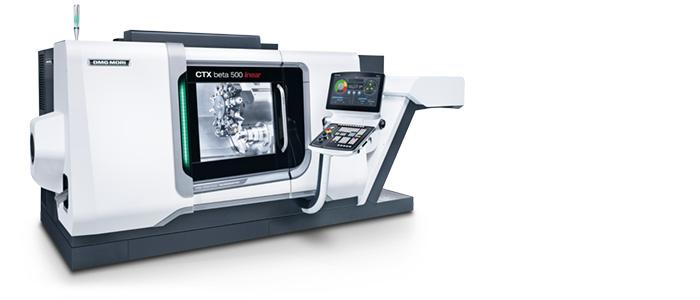

CTX beta 500 linear
CTX beta 500 linear
全新CTX系列模塊式結構
.jpg)
.jpg)
.jpg)
.jpg)
CTX系列車床也是智能化的模塊式結構，方便用戶配置所需萬能車床。從帶高速刀塔的單主軸卡盤機床到帶副主軸和Y軸完整加工的配置，提供充分加工靈活性。由于該機部件性能提高了25 %，該系列機床特別適用于重型棒料，盤件和軸件加工
Highlights CTX beta 500 linear
- 數字驅動技術的加工精度高和一體化主軸電機使該機動態性能好
- CTX beta采用絕對式位置傳感器（不需要參考點回零）:尾座 / 動力驅動刀具和C軸（標配）
- Y軸和副主軸（選配）
- 模塊式結構，易擴展，從各規格尺寸的萬能車削擴展到完整加工
- 帶水冷主軸電機
- 根據加工任務需要，選擇較好刀具數量（12，16）
- 應用范圍廣 -軸行程大，車削直徑大和扭矩大
- 性能穩定性好和使用壽命長 –Y軸剛性好，切削性能好

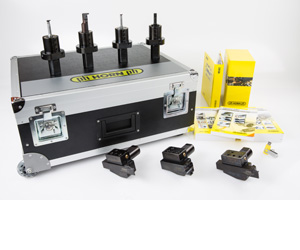

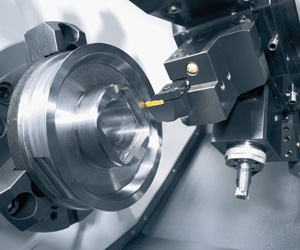

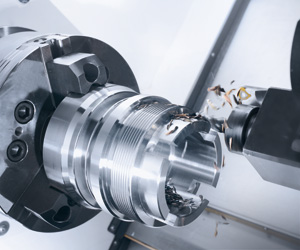

切槽和切斷。刀刃精度和加工能力
無論加工哪種合金材質，Horn總能提供創新的解決方案。高效，經濟，高精度；完成完美加工過程所需的個性化解決方案。
.jpg)
.jpg)
.jpg)
技術參數
CTX beta 500 linear
|
機床型號 |
|
CTX beta 500 linear |
|
|
加工區 |
|
|
|
|
Swing diameter, max. |
mm |
700 |
|
|
Turning diameter, max. |
mm |
410 |
|
|
Distance between the spindle and the tail stock (without feed) |
mm |
675 |
|
|
Max. work piece length with a tailstock (can be machined) |
mm |
550 |
|
|
Distance from the main spindle to the counter spindle (without feed) |
mm |
720 |
|
|
Max. work piece length on the counter spindle (can be machined) |
mm |
500 |
|
|
Main spindle |
|
|
|
|
Integrated motor spindle (ISM) with a C-axis (0,001°) |
rpm |
5,000 (ISM 76) |
|
|
驅動功率（40% / 100% DC） |
kW (AC) |
34 / 25 |
|
|
扭矩（40/100% DC） |
Nm |
380 / 280 |
|
|
Spindle head (flat flange) |
mm |
170h5 |
|
|
Spindle diameter in the front bearing |
mm |
130 |
|
|
Clamping tube inner diameter |
mm |
67 (77)* |
|
|
Max. collet chuck diameter* |
mm |
320 |
|
|
Counter spindle* |
|
|
|
|
Integrated motor spindle (ISM) with a C-axis (0,001°) |
rpm |
140h5 | (170h5)* |
|
|
驅動功率（40% / 100% DC） |
kW (AC) |
20 / 15 | (32 / 25)* |
|
|
扭矩（40/100% DC） |
mm |
127 / 95 | (360 / 280)* |
|
|
Spindle head (flat flange) |
mm |
140h5 | (170h5)* |
|
|
Spindle diameter in the front bearing |
mm |
100 | (130)* |
|
|
Clamping tube inner diameter |
mm |
52 |
|
|
Max. collet chuck diameter* |
mm |
215 |
|
|
Turret (standard) |
|
|
|
|
Tool holder according to VDI / DIN 69880 |
mm |
12 x VDI 40 + 6 Blocktool |
|
|
Number of driven tools / Max. speed |
rpm |
12 / 4,000 |
|
|
Drive power / Torque (40%) |
kW // Nm |
11.3 / 28 |
|
|
Switching time, 30° |
Sec. |
0.4 |
|
|
Turret slide (top) with a tailstock |
|
|
|
|
X / Y / Z |
mm |
300 / ±60 / 550 |
|
|
快移速度X/Y/Z軸 |
m/min |
60 / 22.5 / 30 |
|
|
進給力 (X/Y/Z) |
kN |
5.6 / 5.6 / 7.4 |
|
|
Turret slide (top) on the counter spindle |
|
|
|
|
X / Y / Z |
mm |
300 / ±60 / 500 |
|
|
快移速度X/Y/Z軸 |
m/min |
60 /22.5 / 30 |
|
|
進給力 (X/Y/Z) |
kN |
5.6 / 5.6 / 7.4 |
|
|
副主軸刀架 |
|
|
|
|
X / Z |
mm |
- / 500 |
|
|
快移速度X / Z |
m/min |
- / 30 |
|
|
Feed force X / Z |
kN |
- / 7.4 |
|
|
Tailstock |
|
|
|
|
行程（液壓） |
mm |
500 |
|
|
力 |
kN |
8 |
|
|
Centre location |
MT |
5 |
|
|
|
|
|
|
|
機床重量 |
kg |
5,000 |
|
