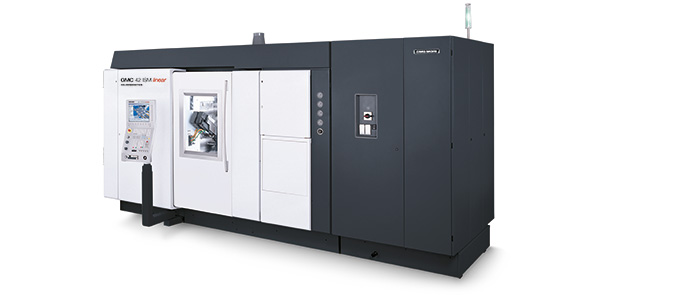

GMC 42 ISM
GMC 42 ISM
動態性能好，最大棒料直徑42 mm和最大扭矩51 Nm
.jpg)
GMC linear系列車床：創新的直線電機驅動和優異的動態性能確保歷史上未曾有過的加工速度。GMC linear系列車床的特點有：滾筒分度定位時間僅0.7秒，最高轉速8,000 rpm和直線電機驅動的最高加速度2 g等，創造從未有過的生產力。直線電機驅動的直接測量系統和滾珠絲杠確保了高精度和高動態性能。GMC ISM系列：GMC ISM系列車削加工中心剛性好，因此能保證高性能地加工高精度零件，夾緊和兩個獨立軸確保雙向完整加工。NC數控導向架取前刀架并導向長件和深孔沿進行深孔鉆加工。全部刀具同時加工確保加工時間短。復雜形狀用標準刀具或型鋼通過相應技術參數成形。
Highlights GMC 42 ISM
- 最大棒料直徑42 mm和最大扭矩51 Nm
- 動態性能好，X軸，Z軸和W軸運動速度快
- 專利技術的多功能設備（選配）：刀塔，徑向鏜孔設備或90°鏜孔設備
- 高精度加工，公差級別H5和帶Y軸和刀塔
- 標準版配雙CPU：可控軸數56個，Siemens 840D powerline數控系統
- 6個內置油冷和獨立轉動的同步主軸電機，驅動功率15 kW（100%）
- 最高快移速度50 m/min和最高加速度2 g
- 每一個主軸位置可有7個CNC數控軸
技術參數
GMC 42 ISM
機床型號 |
|
GMC 42 ISM |
|
加工區 |
|
|
|
Max. bar passage |
mm |
42 |
|
Max. bar feed / component length |
mm |
140 |
|
Number of main spindles |
|
6 |
|
主軸環直徑 |
mm |
280 |
|
Drum switching time |
mm |
1 |
|
Main spindle |
|
|
|
One drive for all six main spindles with C-axis (0.001°) |
rpm |
- |
|
Six integrated spindle motors (ISM) with C-axis (0.001°) |
rpm |
5,000 |
|
Drive power / Torque (40%) |
kW // Nm |
20.4 / 51.3 |
|
Frontal spindle* and pickup spindle |
|
|
|
Separate drive for each spindle position with C-axis (0.001°) |
rpm |
6,000 |
|
Drive power / Torque (40%) |
kW // Nm |
10 / 47.8 |
|
Frontal machining: frontal spindle positions 1-5 |
|
|
|
Frontal slide travel W1-W5 (standard) |
mm |
180 (220)* |
|
Frontal slide travel W1-W5 (high performance)* |
mm |
180 |
|
Acceleration W1-W5 (standard / high performance) |
m/s2 |
10 / 7 |
|
Rapid traverse speed W1-W5 (standard / high performance) |
m/min |
30 / 21 |
|
Feed power W1-W5 (standard / high performance) |
kN |
5.9 / 8.5 |
|
U-axis* travel positions 4 and 5 (positions 1 to 5 from GMC 35 ISM) |
mm |
23 |
|
Rear-sided machining: pickup spindle, position 6 |
|
|
|
Front slide travel W6 |
mm |
220 |
|
Acceleration W6 |
m/s2 |
10 |
|
Rapid traverse speed W6 |
m/min |
30 |
|
Feed power W6 |
kN |
5.9 |
|
Driven* tools |
|
|
|
Number of driven tool axes (multiple tools can be used) |
Number / rpm |
6 / 6,000 |
|
Drive power / Torque (40%) |
kW // Nm |
3.8 / 7 |
|
Radial machining: cross slides, positions 1 to 5 |
|
|
|
Axis travel X1, X2, X3, X4, X5 |
mm |
80 |
|
Axis travel Z1, Z2, Z3, Z4, Z5 |
mm |
100 |
|
Acceleration X1-X5 / Z1-Z5 |
m/s2 |
10 |
|
Rapid traverse speed X1-X5 / Z1-Z5 |
m/min |
30 |
|
Feed power X1-X5 / Z1-Z5 |
kN |
3.1 / 4 |
|
Y-axes* travel (only possible for positions 3 to 5) |
mm |
35 |
|
Rapid traverse speed Y3-Y5 |
m/min |
15 |
|
Feed power Y3-Y5 |
kN |
1.7 |
|
Radial machining: two lateral slides, position 6 |
|
|
|
X6 and U6 travel |
mm |
120 |
|
X6 and U6 acceleration |
m/s2 |
10 |
|
X6 and U6 rapid traverse speed |
m/min |
30 |
|
X6 and U6 feed power |
kN |
1.2 |
|
Z6* travel |
mm |
4 |
|
Central block |
|
|
|
Central block* travel W7 |
mm |
100 |
|
Hydraulic bar stop* |
mm |
18-254 |
|
機床 |
|
|
|
機床占地面積包括排屑器 |
m2 |
- |
|
排屑器排屑高度 |
mm |
- |
|
機床高度 |
mm |
- |
|
機床重量 |
kg |
13,100 |
* Optional
控制系統 |
|
DMG MORI SLIMline®控制面板帶Siemens 840D powerline，雙CPU |
