多主軸自動車床，設置時間縮短65%，成本低和精度高
.jpg)

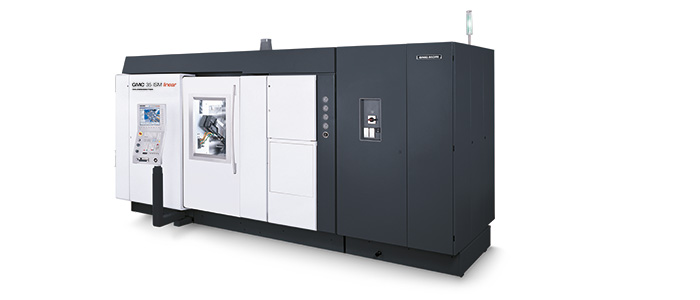

CNC數控多主軸型車床，單CPU可控制10個CNC數控通道和31個CNC數控軸，帶來高產能，短節拍時間低的投資額。5個徑向刀架，6個正面刀架和2個背面加工的CNC數控刀架，擁有高加工靈活性，適合中等批量復雜工件加工。
GMC 35工件（CpK）測試可達1.67（h6直徑）并顯著降低機床整個生命周期中的成本。
Highlights GMC 35
- 相對凸輪控制的車床，刀具調整時間縮短65 %
- 最大棒料規格35 mm
- CNC數控多主軸車床中生產力最高機型
- 維護成本低 – 用機械方式取代傳統凸輪和特殊刀具
- 機床配置適合用于中等批量復雜零件生產，投資成本低
- 高精度（CpK：h6為1.67）
- 主軸鼓端面鼠牙盤分度定位
- 除5個徑向刀架外，還可安裝背面加工的刀架和正面刀架
- 可選配：獨立控制的正面刀架刀塔，正面銑削/徑向鉆孔/多頭螺紋銑削刀座和一個U軸

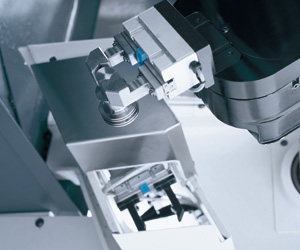

.jpg)
.jpg)
技術參數
GMC 35
|
機床型號 |
|
GMC 35 |
|
加工區 |
|
|
|
Max. bar passage |
mm |
35 |
|
Max. bar feed / component length |
mm |
140 |
|
Number of main spindles |
|
6 |
|
主軸環直徑 |
mm |
280 |
|
Drum switching time |
mm |
1 |
|
Main spindle |
|
|
|
One drive for all six main spindles with C-axis (0.001°) |
rpm |
6,000 |
|
Six integrated spindle motors (ISM) with C-axis (0.001°) |
rpm |
- |
|
Drive power / Torque (40%) |
kW // Nm |
25 / 238.9 |
|
Frontal spindle* and pickup spindle |
|
|
|
Separate drive for each spindle position with C-axis (0.001°) |
rpm |
6,000 |
|
Drive power / Torque (40%) |
kW // Nm |
10 / 47.8 |
|
Frontal machining: frontal spindle positions 1-5 |
|
|
|
Frontal slide travel W1-W5 (standard) |
mm |
180 (220)* |
|
Frontal slide travel W1-W5 (high performance)* |
mm |
- |
|
Acceleration W1-W5 (standard / high performance) |
m/s2 |
10 |
|
Rapid traverse speed W1-W5 (standard / high performance) |
m/min |
30 |
|
Feed power W1-W5 (standard / high performance) |
kN |
3.7 |
|
U-axis* travel positions 4 and 5 (positions 1 to 5 from GMC 35 ISM) |
mm |
23 |
|
Rear-sided machining: pickup spindle, position 6 |
|
|
|
Front slide travel W6 |
mm |
220 |
|
Acceleration W6 |
m/s2 |
10 |
|
Rapid traverse speed W6 |
m/min |
30 |
|
Feed power W6 |
kN |
3.7 |
|
Driven* tools |
|
|
|
Number of driven tool axes (multiple tools can be used) |
Number / rpm |
5 / 6,000 |
|
Drive power / Torque (40%) |
kW // Nm |
3.8 / 7 |
|
Radial machining: cross slides, positions 1 to 5 |
|
|
|
Axis travel X1, X2, X3, X4, X5 |
mm |
80 |
|
Axis travel Z1, Z2, Z3, Z4, Z5 |
mm |
100 |
|
Acceleration X1-X5 / Z1-Z5 |
m/s2 |
10 |
|
Rapid traverse speed X1-X5 / Z1-Z5 |
m/min |
30 |
|
Feed power X1-X5 / Z1-Z5 |
kN |
3.1 / 3 |
|
Y-axes* travel (only possible for positions 3 to 5) |
mm |
- |
|
Rapid traverse speed Y3-Y5 |
m/min |
- |
|
Feed power Y3-Y5 |
kN |
- |
|
Radial machining: two lateral slides, position 6 |
|
|
|
X6 and U6 travel |
mm |
120 |
|
X6 and U6 acceleration |
m/s2 |
10 |
|
X6 and U6 rapid traverse speed |
m/min |
30 |
|
X6 and U6 feed power |
kN |
1.2 |
|
Z6* travel |
mm |
- |
|
Central block |
|
|
|
Central block* travel W7 |
mm |
100 |
|
Hydraulic bar stop* |
mm |
18-254 |
|
機床 |
|
|
|
機床占地面積包括排屑器 |
m2 |
- |
|
排屑器排屑高度 |
mm |
- |
|
機床高度 |
mm |
- |
|
機床重量 |
kg |
13,000 |
* Option
控制系統 |
|
DMG MORI SLIMline®控制面板帶Siemens 840D powerline，雙CPU |
