CNC數控6軸自動車床：擁有先進CNC數控技術的全部優點
.jpg)
GMC 20 ISM進入CNC數控多主軸機床的新領域。GMC 20 ISM的整體優勢為該機提供全面生產能力，是靈活適應3-20 mm直徑各種批量大小的車削加工要求的全新標桿機床。單分度主軸滾筒一項就能縮短周期時間。并且新開發的MF Programmer 3D軟件進一步推動多主軸機床的成功。
Highlights GMC 20 ISM
- 加工區與凸輪控制的機床類似，傳統機床操作人員培訓簡單。
- 動態性能好和結構穩定，與機械式多主軸機床的周期時間等同。
- 6個帶油冷獨立的主軸電機
- 標配5個CNC復合中心架，切斷刀架和背面加工刀架。
- 內徑和外徑加工精度高，公差H5
- 扭矩穩定的同步主電機
- 連續分度主軸滾筒，更大限度縮短非加工時間
- 排屑好，通過CNC數控導向架支撐工件
- DMG Programmer 3D Turning編程容易和程序無碰撞

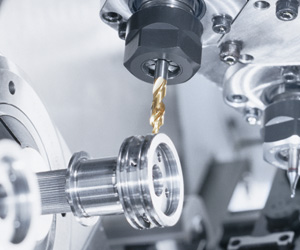

.jpg)

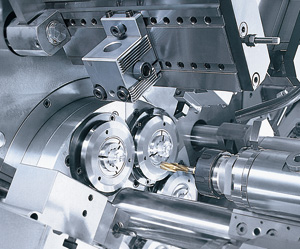

.jpg)
技術參數
GMC 20 ISM
機床型號 |
|
GMC 20 ISM |
|
加工區 |
|
|
|
Max. bar passage |
mm |
20 |
|
Max. bar feed / component length |
mm |
120 |
|
Number of main spindles |
|
6 |
|
主軸環直徑 |
mm |
180 |
|
Drum switching time |
mm |
0.7 |
|
Main spindle |
|
|
|
One drive for all six main spindles with C-axis (0.001°) |
rpm |
- |
|
Six integrated spindle motors (ISM) with C-axis (0.001°) |
rpm |
8,000 |
|
Drive power / Torque (40%) |
kW // Nm |
13.7 / 20.2 |
|
Frontal spindle* and pickup spindle |
|
|
|
Separate drive for each spindle position with C-axis (0.001°) |
rpm |
6,000 |
|
Drive power / Torque (40%) |
kW // Nm |
15.1 / 32.5 |
|
Frontal machining: frontal spindle positions 1-5 |
|
|
|
Frontal slide travel W1-W5 (standard) |
mm |
140 |
|
Frontal slide travel W1-W5 (high performance)* |
mm |
- |
|
Acceleration W1-W5 (standard / high performance) |
m/s2 |
10 |
|
Rapid traverse speed W1-W5 (standard / high performance) |
m/min |
30 |
|
Feed power W1-W5 (standard / high performance) |
kN |
3.1 |
|
U-axis* travel positions 4 and 5 (positions 1 to 5 from GMC 35 ISM) |
mm |
15 |
|
Rear-sided machining: pickup spindle, position 6 |
|
|
|
Front slide travel W6 |
mm |
140 |
|
Acceleration W6 |
m/s2 |
10 |
|
Rapid traverse speed W6 |
m/min |
30 |
|
Feed power W6 |
kN |
3.1 |
|
Driven* tools |
|
|
|
Number of driven tool axes (multiple tools can be used) |
Number / rpm |
6 / 6,000 |
|
Drive power / Torque (40%) |
kW // Nm |
1.8 / 2.9 |
|
Radial machining: cross slides, positions 1 to 5 |
|
|
|
Axis travel X1, X2, X3, X4, X5 |
mm |
55 |
|
Axis travel Z1, Z2, Z3, Z4, Z5 |
mm |
70 |
|
Acceleration X1-X5 / Z1-Z5 |
m/s2 |
10 |
|
Rapid traverse speed X1-X5 / Z1-Z5 |
m/min |
30 |
|
Feed power X1-X5 / Z1-Z5 |
kN |
3.1 / 3 |
|
Y-axes* travel (only possible for positions 3 to 5) |
mm |
- |
|
Rapid traverse speed Y3-Y5 |
m/min |
- |
|
Feed power Y3-Y5 |
– |
|
|
Radial machining: two lateral slides, position 6 |
|
|
|
X6 and U6 travel |
mm |
65 |
|
X6 and U6 acceleration |
m/s2 |
10 |
|
X6 and U6 rapid traverse speed |
m/min |
30 |
|
X6 and U6 feed power |
kN |
1.2 |
|
Z6* travel |
mm |
- |
|
Central block |
|
|
|
Central block* travel W7 |
mm |
100 |
|
Hydraulic bar stop* |
mm |
10-140 |
|
機床 |
|
|
|
機床占地面積包括排屑器 |
m2 |
- |
|
排屑器排屑高度 |
mm |
- |
|
機床高度 |
mm |
- |
|
機床重量 |
kg |
10,300 |
* Optional
- not available
控制系統 |
|
DMG MORI SLIMline®控制面板帶Siemens 840D powerline，雙CPU |
